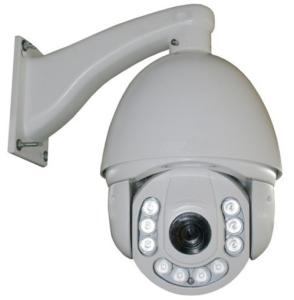

PE129IR36 IR High Speed Dome Camera , 150m ir distance, WDR, 36x12
Quick Detail:
IR distance 150 meters
IP66
128 preset,8pcs cruise trajectory, each can setup 16 preset, 4 group pan scanning.
4pcs patterns, each record time more than 120s, Data memory power
Pan speed 0-150°/s,Tilt speed 0-90°/s
Pan 360 ° rotation endless, tilt 90°, 180°auto flip;
Low speed running smooth, ultra-low-noise
Built-in High accuracy RTC clock, support timing function
Built-in surge protection, lighting protection, effectively prevent <4 kv
Heater & fan inside
Instantaneous, lightning surge and other pulse signal
Description:
PE129IR36 is outdoor IR high Speed dome camera, with Sony original FCB-EX1020 module,36x optical zoom, 12x digital zoom, its small size to make installation could be easy.
Specifications
Camera Specification (Sony fcb-ex1010)
| Image Sensor |
Sony 1/4" EX-view HAD CCD |
| Focal Length |
36x optical zoom, f=3.4mm(Wide) to 122.4mm (Tele), 36x optical zoom, 12x digital zoom |
| Zoom Speed |
Approx. 2.1sec (Optical WIDE-TELE ) |
| Angular of View H |
57.8 degree (WIDE end) to 1.7 degree (TELE end) |
| Min. Working Distance |
320mm (WIDE end), 1500mm (TELE end) |
| Aperture Range |
F1.6-F4.5 |
| Effective Pixels |
Approx. 440,000 pixels |
| Horizontal Resolution |
700TVL |
| Signal System |
NTSC / PAL |
| Min. Illumination |
0.1Lux / F1.4 (Color) 0.05Lux / F1.4 (B/W) |
| White Balance |
Auto, ATW, Indoor, Outdoor, One-push, Manual |
| AGC |
Auto/Manual (-3 to 28 dB, 2 dB steps) |
| S/N Ratio |
Better than 50dB |
| Wide dynamic range |
ON / OFF |
| BLC |
ON / OFF |
| Electronic Shutter |
1/1~1/10,000s (22 steps) |
| Character generator |
Mode display/Multi-line OSD (OSD has priority over Mode display) |
| Picture effects |
E-Flip, Nega Art, Black & White, Mirror Image |
OSD parameters
| OSD Menu |
Chinese/English |
| Cruise function |
8pcs cruise, each of them can setup 16 preset, residence time can be setup. |
| Pattern |
4pcs, each of them record time more than 120s. |
| RTC |
Timing open |
| Scanning function |
Pattern/Cruise/Horizontal |
| Device labeled |
Can display or hide camera title |
| Preset |
128 |
| Address |
Display/Hide |
| Address range |
0—255 can be soft/hard to change |
| Communication |
RS485 |
| Baud rate |
2400/4800/9600/19200 adjustable |
| Camera coordinate |
Display/Hide |
| Protocol |
Support Pelco-P/D |
| Zoom mark |
Display/Hide |
| Total camera temperature |
Display/Hide |
Mechanical parameters
| Pan angle |
0o—360o endless |
| Pan speed |
0o—150o/s |
| Tilt angle |
0o—90o |
| Tilt speed |
0o—90o/s |
| Preset accuracy |
±0.1o |
General
| Work temperature |
-35oC～+55oC |
| Work humidity |
10～75% |
| Heater |
Auto control temperature control (0º open) |
| Weight |
4.42Kg |
| Power supply |
DC12V/5A |
| Power consumption |
60W |
Applications:
The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. to offer video to DVR/matrix system
